YDK-27-6A
trusTec
95mm
27W
780RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
| Quantity: | |
|---|---|
Changzhou Trustec Motor Company Limited is located in Xinbei District, Changzhou City, Jiangsu Province, covering an area of 20,000 square meters. It is a scientific and technological innovation enterprise integrating independent research and development, design, production and sales. We mainly supply AC/EC blowers and motors as a solutions manufacturer in the HVACR industry.
Our company was approved as a high-tech enterprise in 2021. We have had many patents, software copyrights, and invention patents, and has carried out industry-university-research cooperation with large and medium-sized universities.
We have the export experience over 15 years. In addition to being sold in mainland China, various products are also exported to more than 80 countries such as USA, Mexico, Brazil, Holland, UK, Australia and so on.Our products have had passed CCC, ROSH, SABER, ULCSA, CE, UKCA and ISO9001:2015 certification. Our business philosophy is “People-oriented, Teamwork, Quality first, and Pursuit of excellence”.
Changzhou Trustec Motor Company Limited is located in Xinbei District, Changzhou City, Jiangsu Province, covering an area of 20,000 square meters. It is a scientific and technological innovation enterprise integrating independent research and development, design, production and sales.
Main products：
Small power AC motors for wall-mounted, cabinet-mounted and window-mounted household air conditioners; Coil series motor for central air conditioning terminal fan; Air-cooled main motor; Motor for high static pressure air duct air conditioner; DC brushless motor; Various axial flow and through-flow fans, etc.
Product features:
Use low noise high quality rolling bearing.Nickel plating for shaft, electrophoretic coating forenclosure.
Reasonable structure, high efficiency, low temperaturerise, low noise, small vibration.
Product application:
Split air conditioner outdoor unit and fresh airventilation system

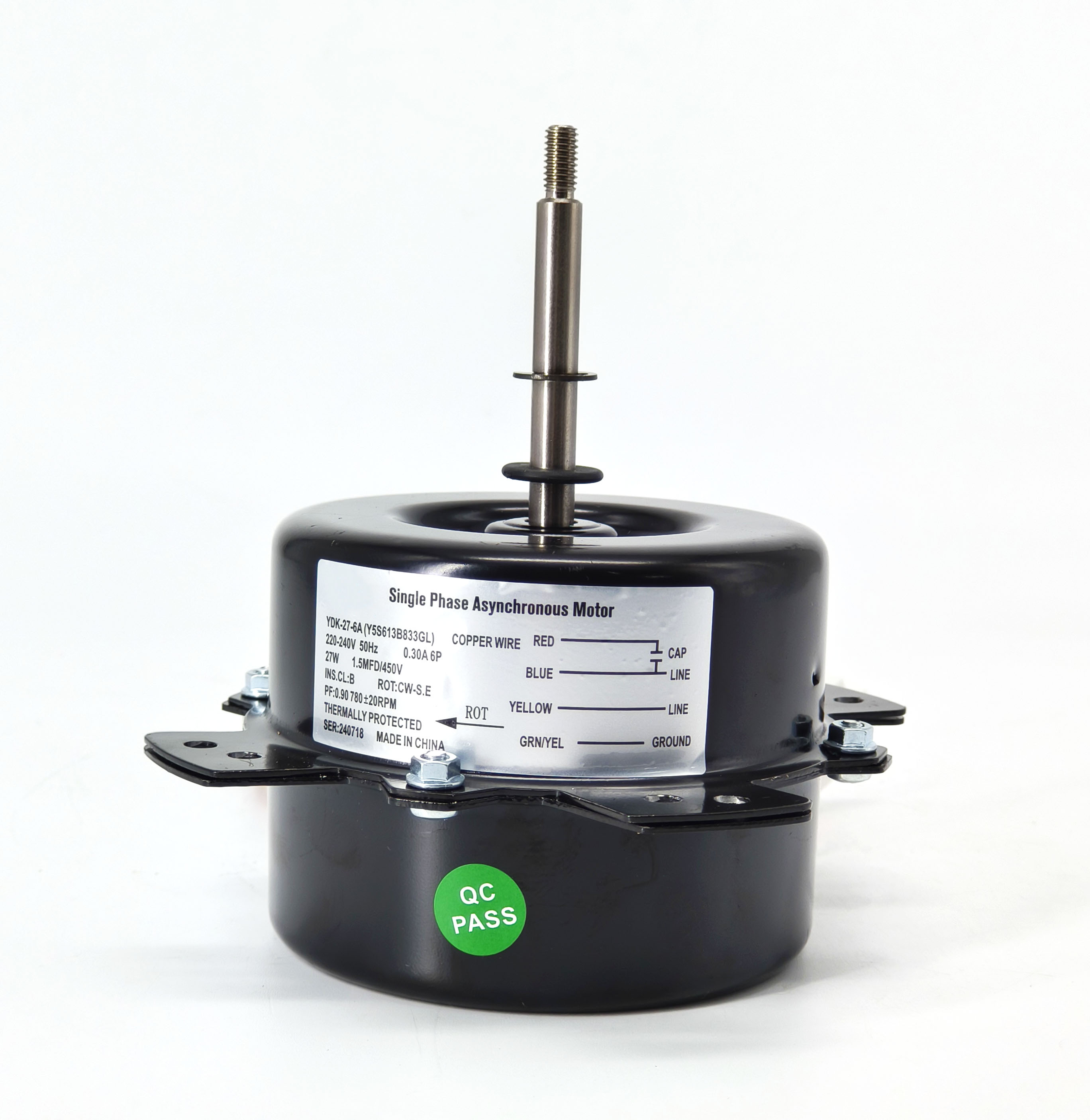

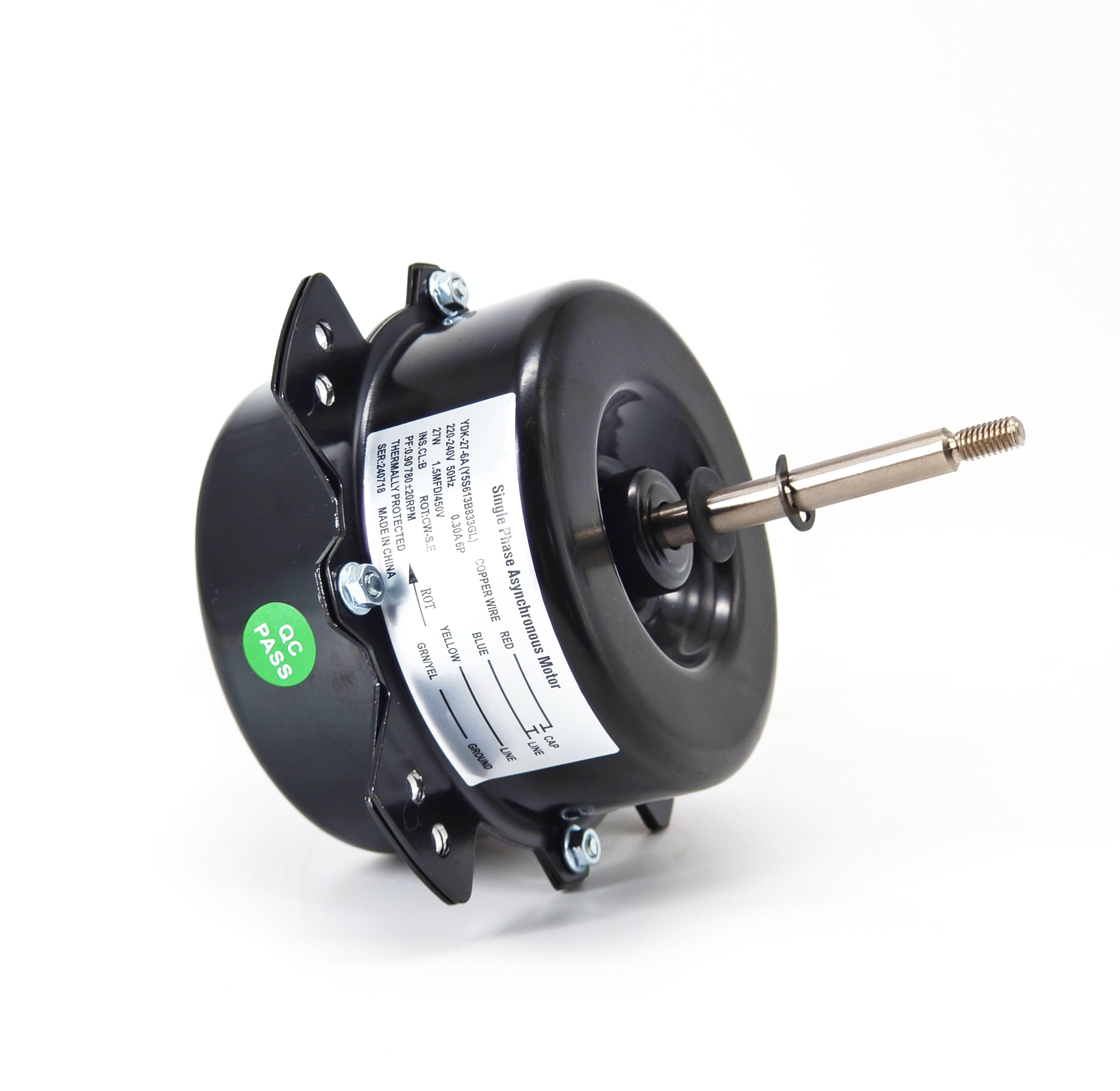

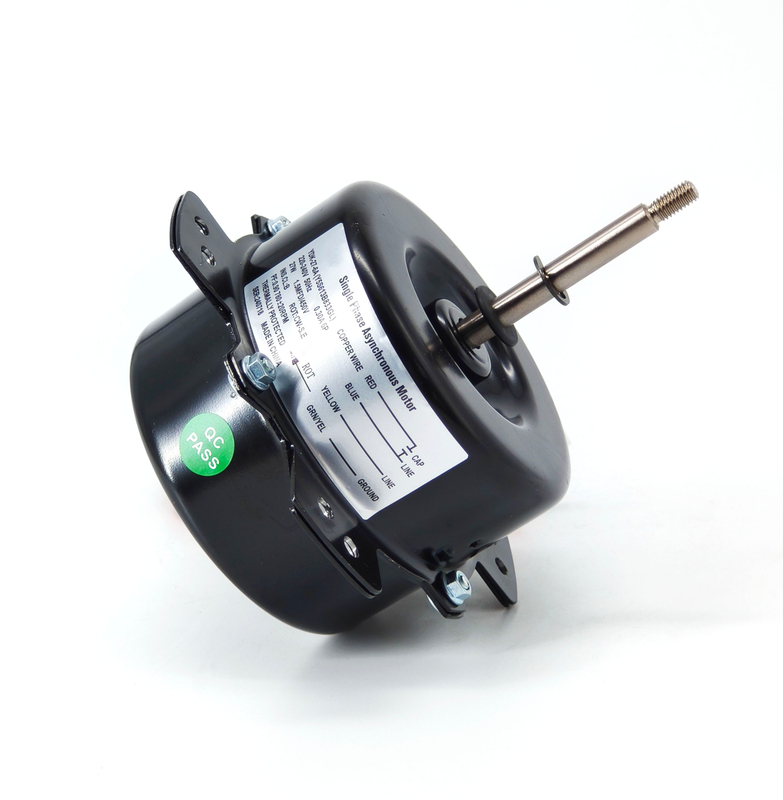

Detailed Product Description
| Product: | Indoor Fan Motor | Frame Size: | 95mm |
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220-240V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.3A |
| Phase: | Single Phase | Output HP: | 27W |
| Shaft Flats: | One Flat | Rated Speed: | 780RPM |
| Bearings: | Ball Bearing | Pole: | 6P |
| Mounting: | Stud Mounting All Angel | Capacitor: | 1.5MFD/450V |
| Insulation Class: | Class B | Shaft Diameter: | 0.31" /8mm |
| Rotation: | CW-SE | Shaft Length: | 2.57" /65.5mm |
| Max. Ambient Temperature: | 40℃/104℉ | Flat Length: | 0.46" /11.7mm |
| PF: | 0.9 | Lead Length: | 29.37" /1000mm |
![DZONOS{$T$IKQ{4WO~$])MA](http://iprorwxhjnqjli5q.ldycdn.com/cloud/liBpmKpqloSRrlnllqnpim/DZONOS-T-IKQ-4WO-MA.jpg)
Technical parameter
Model | Output power（W） | Supply Voltage（V） | Supply Frequency（Hz） | Rated Speed（RPM） | Current（A） |
| YDK95-20-6 | 20 | 220~240 | 50/60 | 830 | 0.25 |
| YDK95-25-6 | 25 | 220~240 | 50/60 | 830 | 0.27 |
| YDK95-30-6 | 30 | 220~240 | 50/60 | 830 | 0.3 |
| YDK95-35-6 | 35 | 220~240 | 50/60 | 800 | 0.33 |
| YDK95-40-6 | 40 | 220~240 | 50/60 | 850 | 0.4 |
| YDK120-50-6 | 50 | 220~240 | 50/60 | 850 | 0.55 |
| YDK120-55-6 | 55 | 220~240 | 50/60 | 850 | 0.57 |
| YDK120-60-6 | 60 | 220~240 | 50/60 | 850 | 0.6 |
| YDK120-70-6 | 70 | 220~240 | 50/60 | 850 | 0.65 |
Remarks: The above are representative motors for reference only. Motors of various sizes can be customized according to customer requirements!!
Our services:
1. In reply to your inquiry within 12 hours. Because we are valuing every customer.
2. We cooperate with customer to design and develop new product. Provide OEM.
3. We provide quality after-sales service.
4. 15-30 days leading time.
5. We are willing to help you arrange delivery, testing or other requests.
Our company:
1. As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.
2. Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.
3. Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.
220-240V 50Hz 27W 780RPM AC Asynchronous Motor for Air Conditioning FAQ:
Q1- What is the warranty of the motors?
The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.
Q2- Can you design the motor according to the different request?
Yes, we can offer the ODM.
Q3- Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...
Q4- How to get the accurate offer?
The precise price will be quoted after checking the specification and mounting dimension of the motor.
