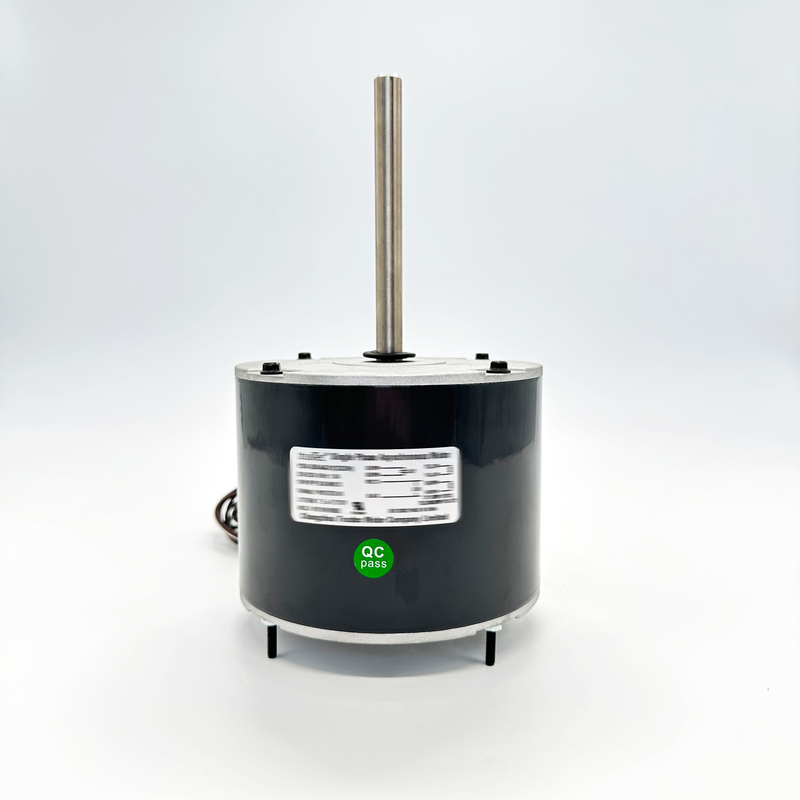

48 Frame Condenser Fan Motor - Ambient Temperature 70℃ 1/3HP1075RPM 460V 60HZ

  • CTM5-737HS

  • trusTec

  • Nema 48

  • 1/3HP

  • 1075RPM

  • 200pcs

  • Negotiable (FOB/CNF/CIF)

  • Standard carton packing, foam board inside for protection.

  • T/T, L/C

  • 15 days fresh products after order confirmation.

  • 100,000 pcs per month

  • E529388

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

460V 1/3HP 48 Frame Condenser Fan Motor Specifications and Features

Product Condenser Fan Motor Frame Nema 48
Motor Type Permanent Split Capacitor Supply Voltage 460V
Enclosure Type TEAO(Totally Enclosed Air Over) Supply Frequency 60Hz
Thermal Overload Equipped With An Automatic Thermal Overload Current 1.0A
Phase Single Phase Output HP 1/3HP
Shaft Flats One Flat Rated Speed 1075RPM
Mounting Orientation All Angle Capacitor 7.5uF/370V
Drain Hole Opposite Shaft End Insulation Class Class F
Mounting Stud Mounting All Angel Shaft Length 5.5",customizable
Bearings Ball Bearing Shaft Diameter 1/2"
Max. Ambient Temperature 70℃/158℉ Rotation Reversible
High Light HVAC Systems Condenser Fan Motor, 460V 60HZ Condenser Fan Motor, 1/3HP HVAC Systems Condenser Fan Motor

You can refer to the file for more motor models atCROSS REFERENCE TRUSTEC MOTOR.pdf
