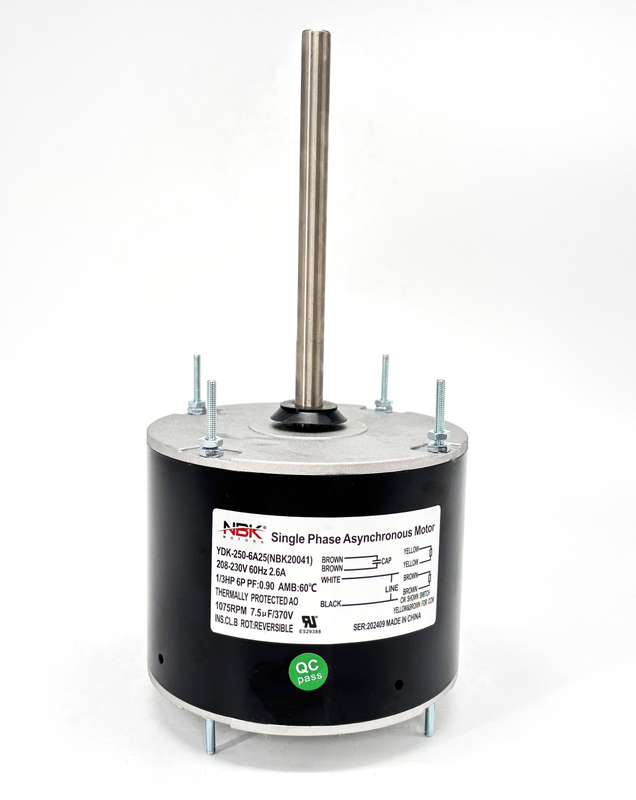

48 Frame Condenser Fan Motor - 250W-1075RPM 208-230V 60HZ

  • YDK-250-6A25

  • trusTec

  • Nema 48

  • 1/3HP

  • 1075RPM

  • 200pcs

  • Negotiable (FOB/CNF/CIF)

  • Standard carton packing, foam board inside for protection.

  • T/T, L/C

  • 15 days fresh products after order confirmation.

  • 100,000 pcs per month

  • E529388

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

250W 48 Frame Condenser Fan Motor Specifications and Features

ProductCondenser Fan MotorFrameNema 48
Motor TypePermanent Split CapacitorSupply voltage208-230V
Enclosure TypeTEAO(Totally Enclosed Air Over)Supply Frequency60Hz
Thermal OverloadEquipped With An Automatic Thermal OverloadCurrent2.6A
PhaseSingle PhaseOutput HP1/3HP
Shaft FlatsRight Angle FlatRated Speed1075RPM
Mounting OrientationAll AngleCapacitor7.5uF/370V
Drain HoleOpposite Shaft EndHousing4.53"/115mm
MountingStud Mounting All AngelShaft Length6.5"/165mm
BearingsBall BearingShaft Diameter0.5"/12.7mm
Max. Ambient Temperature60℃/10℉Flat Length5.04''/128mm
Insulation ClassClass BScrew Length1.00''/25.4mm
RotationReversibleLead Length27.56''/700mm
High Light1/3HP Condenser Fan Motor, 7.5uF/370V Condenser Fan Motor, 208-230V Condenser Fan Motor
