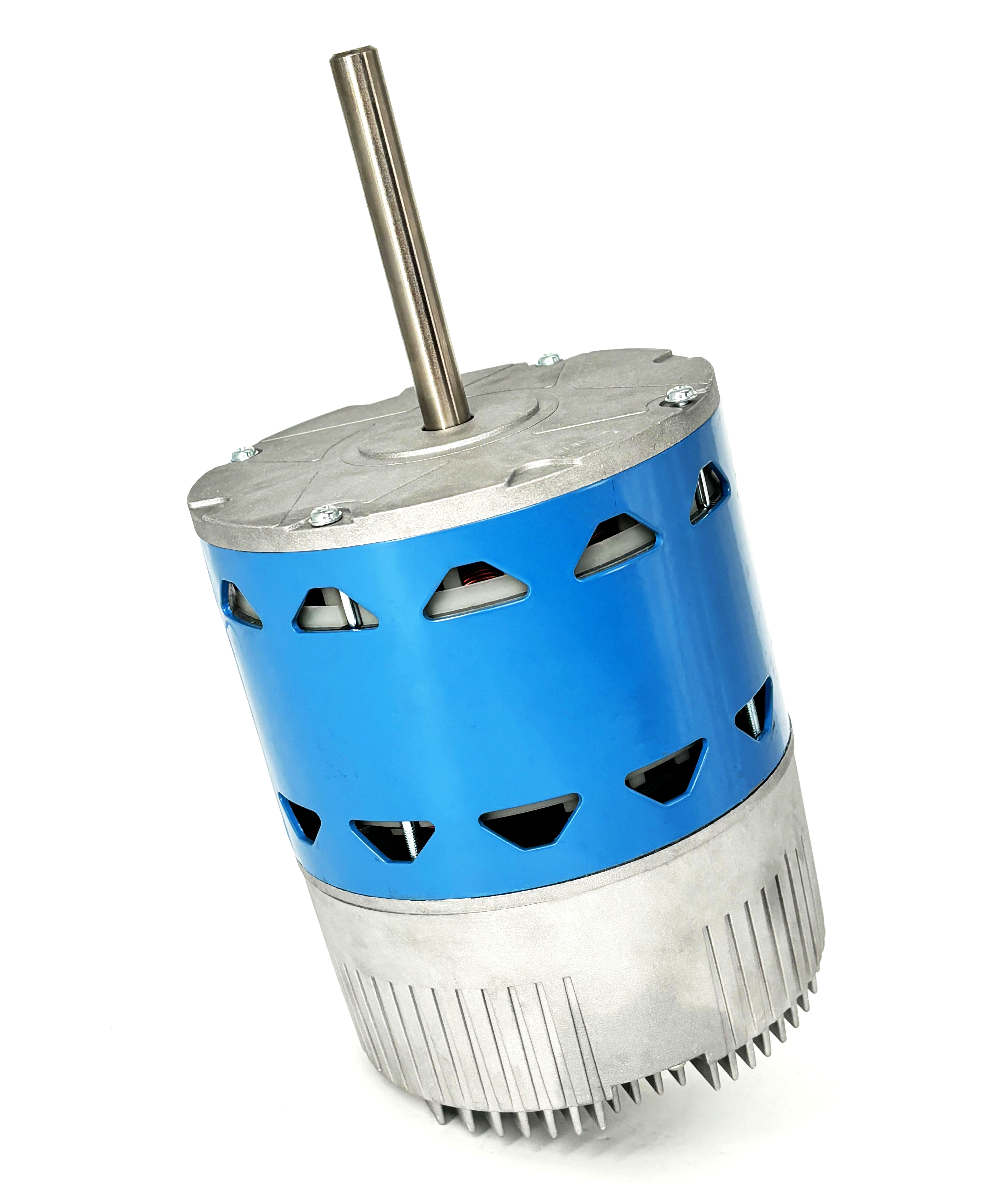

48 Frame ECM Motor For Fan and Blower - 550W 300-1200RPM 220-240V 50/60HZ

  • TZD-550-10B

  • trusTec

  • Nema 48

  • 550W

  • 300-1200RPM

  • 200pcs

  • Negotiable (FOB/CNF/CIF)

  • Standard carton packing, foam board inside for protection.

  • T/T, L/C

  • 15 days fresh products after order confirmation.

  • 100,000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

550W 48 Frame ECM Motor Specifications and Features

ProductElectroncally Commutated Motor (ECM)FrameNema 48
Motor TypeDirect Drive BlowerSupply Voltage220-240V
Enclosure TypeOAO(Open Air Over)Supply Frequency50/60HZ
Thermal OverloadEquipped With An Automatic Thermal OverloadCurrent4.5A
PhaseSingle PhaseOutput Power550W
MountingRoundSpeed300-1200RPM
BearingsBall BearingPoles10P
Mounting OrientationStud Mounting All AngelShaft Diameter1/2" / 12.7mm
Insulation ClassClass FShaft Length4.0" / 101.6mm
RotationCW(SE)Max. Ambient Temperature40℃/104℉
Speed Control0-10V Speed Control/PWM
