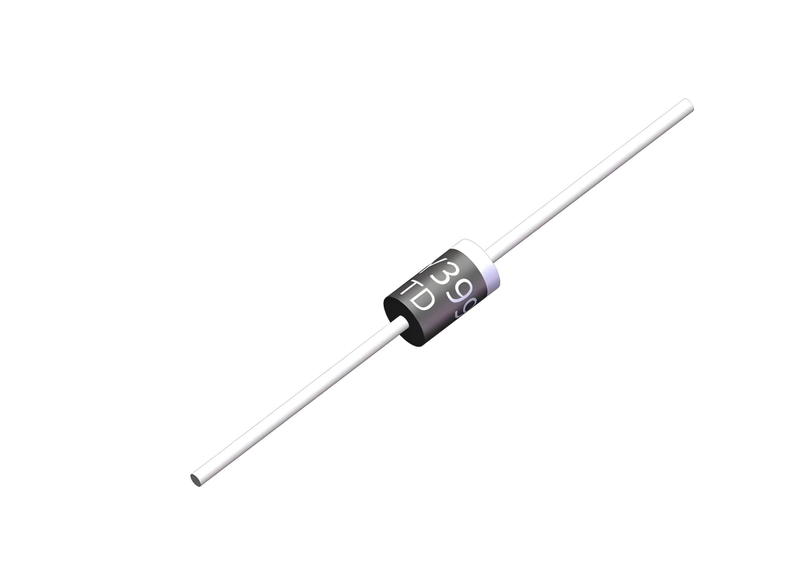

High Voltage Fast Recovery Rectifier Diode BY399 3A 800V DO-201AD

  • BY396 THRU BY399

  • trusTec

  • 200，000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature


The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Fast switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension


Mechanical Data


Case:

DO-201AD molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.012 ounce, 1.10 grams


Product Drawing



Maximum Ratings and Electrical Characteristics


Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.




 SYMBOLS BY396 BY397 BY398 BY399 UNITS
Maximum repetitive peak reverse voltage VRRM 100 200 400 800 VOLTS
Maximum RMS voltage VRMS 70 140 280 560 VOLTS
Maximum DC blocking voltage VDC 100 200 400 800 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃ I(AV) 3.0 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 150.0 Amps
Maximum instantaneous forward voltage at 3.0A VF 1.3 Volts
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃		 IR 10.0
100.0		 µA
Maximum reverse recovery time (NOTE 1) trr 500 ns
Typical junction capacitance (NOTE 2) CJ 60.0 pF
Typical thermal resistance (NOTE 3) RθJA 20.0 ℃/W
Operating junction and storage temperature range TJ,TSTG -65 to +150 ℃


Note:

1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted

download BY396 THRU BY399.pdf
