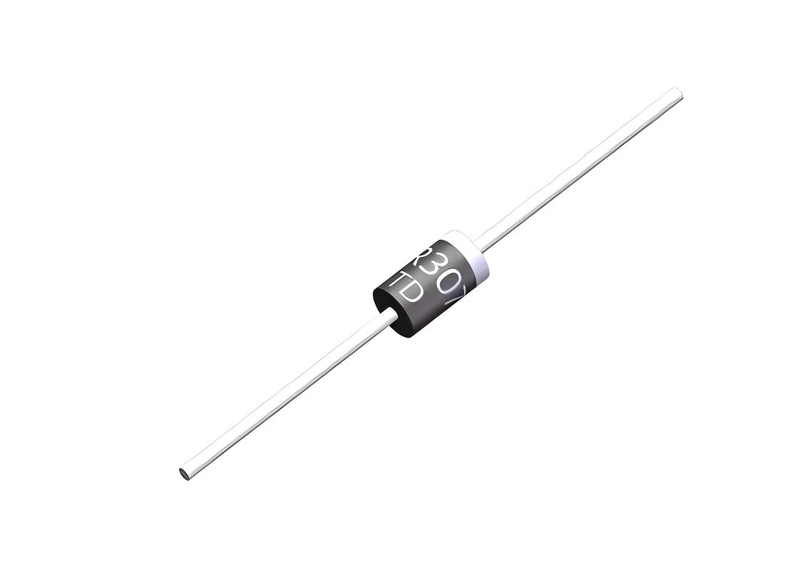

200V 400V 600v 800v Fast Recovery Rectifiers 3A DO-201AD FR301 THRU FR307

  • FR301 THRU FR307

  • trusTec

  • 200，000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15 -30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature


The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Fast switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension


Mechanical Data


Case:

JEDEC DO-201AD molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.04 ounce, 1.10 grams


Product Drawing



Maximum Ratings and Electrical Characteristics


Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.



 SYMBOLS FR301 FR302 FR303 FR304 FR305 FR306 FR307 UNITS
Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 VOLTS
Maximum RMS voltage VRMS 35 70 140 280 420 560 700 VOLTS
Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃ I(AV) 3.0 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 150.0 Amps
Maximum instantaneous forward voltage at 3.0A VF 1.3 VOLTS
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃		 IR 5.0
100		 µA
Maximum reverse recovery time (NOTE 1) trr 150 250 500 ns
Typical junction capacitance (NOTE 2) CJ 60.0 pF
Typical thermal resistance (NOTE 3) RθJA 40.0 ℃/W
Operating junction and storage temperature range TJ,TSTG -65 to +150 ℃


Note:


1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

download FR301 THRU FR307.pdf
