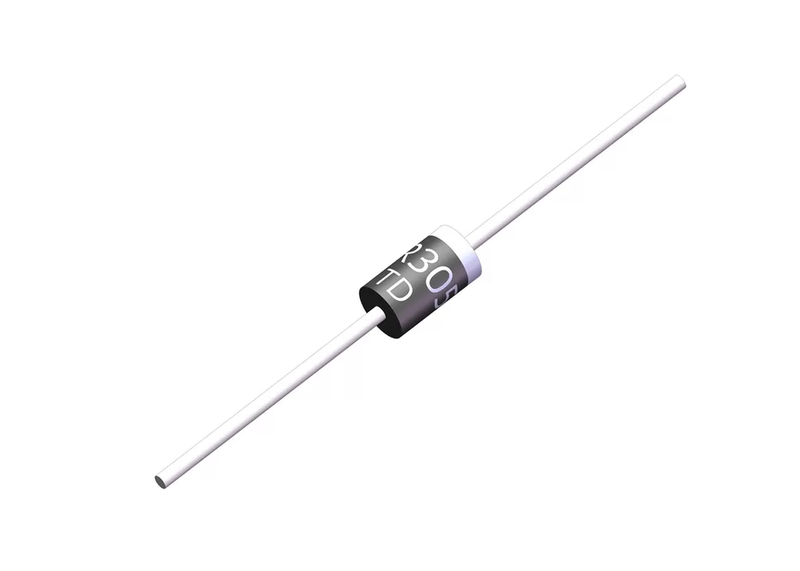

1N4933 THRU 1N4937
trusTec
200，000pcs
Negotiable (FOB/CNF/CIF)
T/T, L/C
15-30 days fresh products after order confirmation.
200,00000 pcs per month
| Quantity: | |
|---|---|
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Fast switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension
Mechanical Data

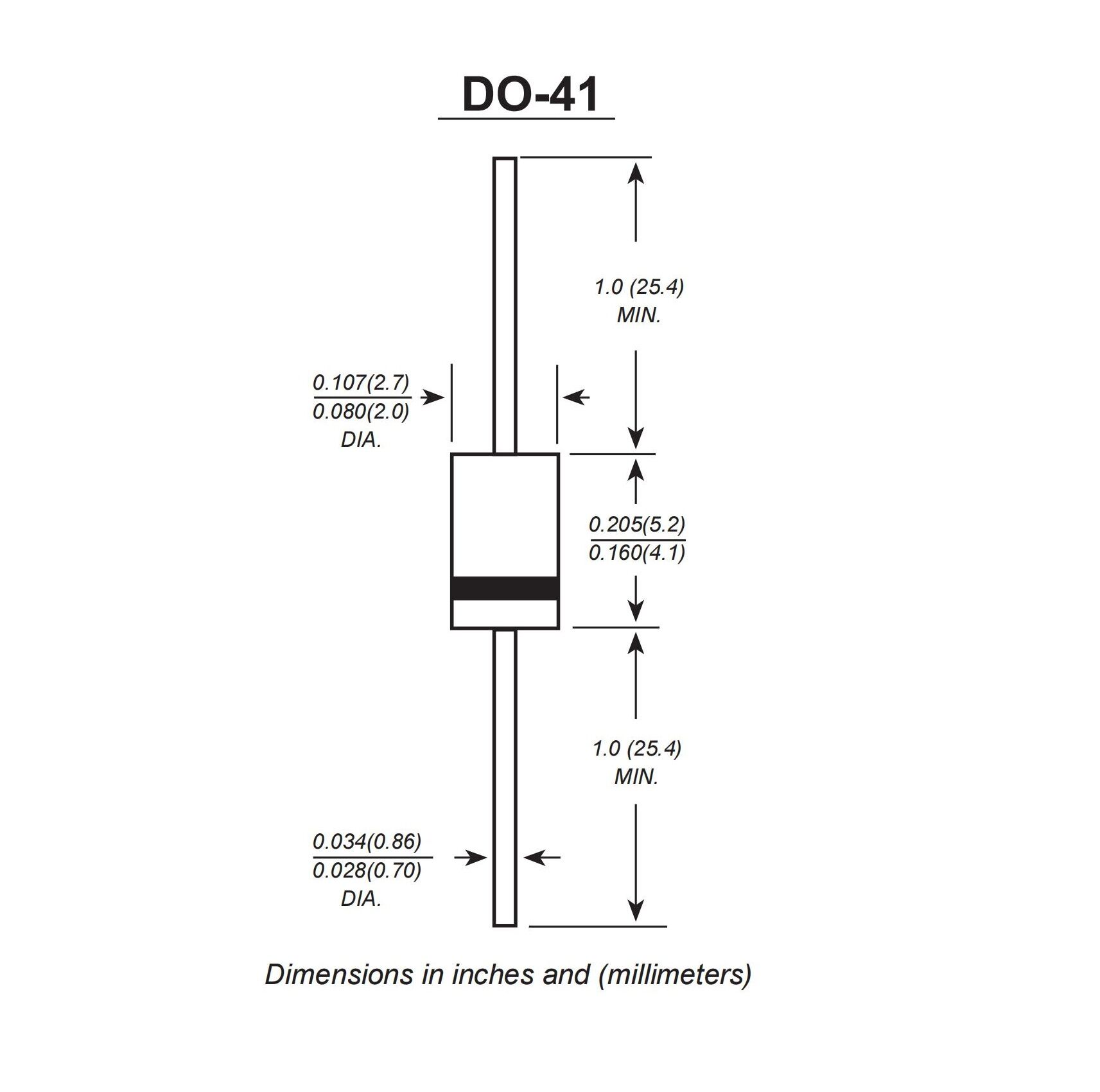

DO-41 molded plastic body
Plated axial leads, solderable per MIL-STD-750, Method 2026
Color band denotes cathode end
Any
0.012 ounce, 0.33 grams
Ratings at 25℃ ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted
