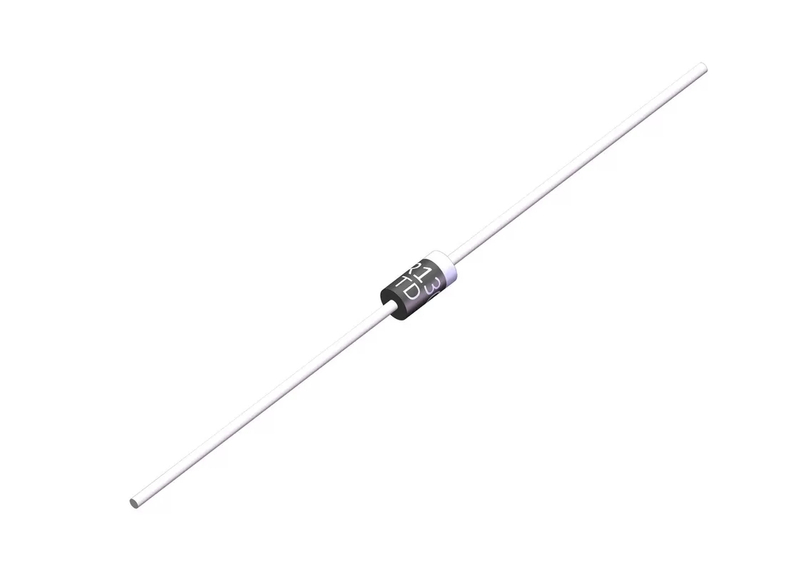

Schottky Barrier Rectifiers SR120 THRU SR1200 20 to 200V 1A DO-41

  • SR120 THRU SR1200

  • trusTec

  • 200，000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature


The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Metal silicon junction,majority carrier conduction

Low power loss,high efficiency

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension


Mechanical Data


Case:

JEDEC DO-41 molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.012 ounce, 0.33 grams

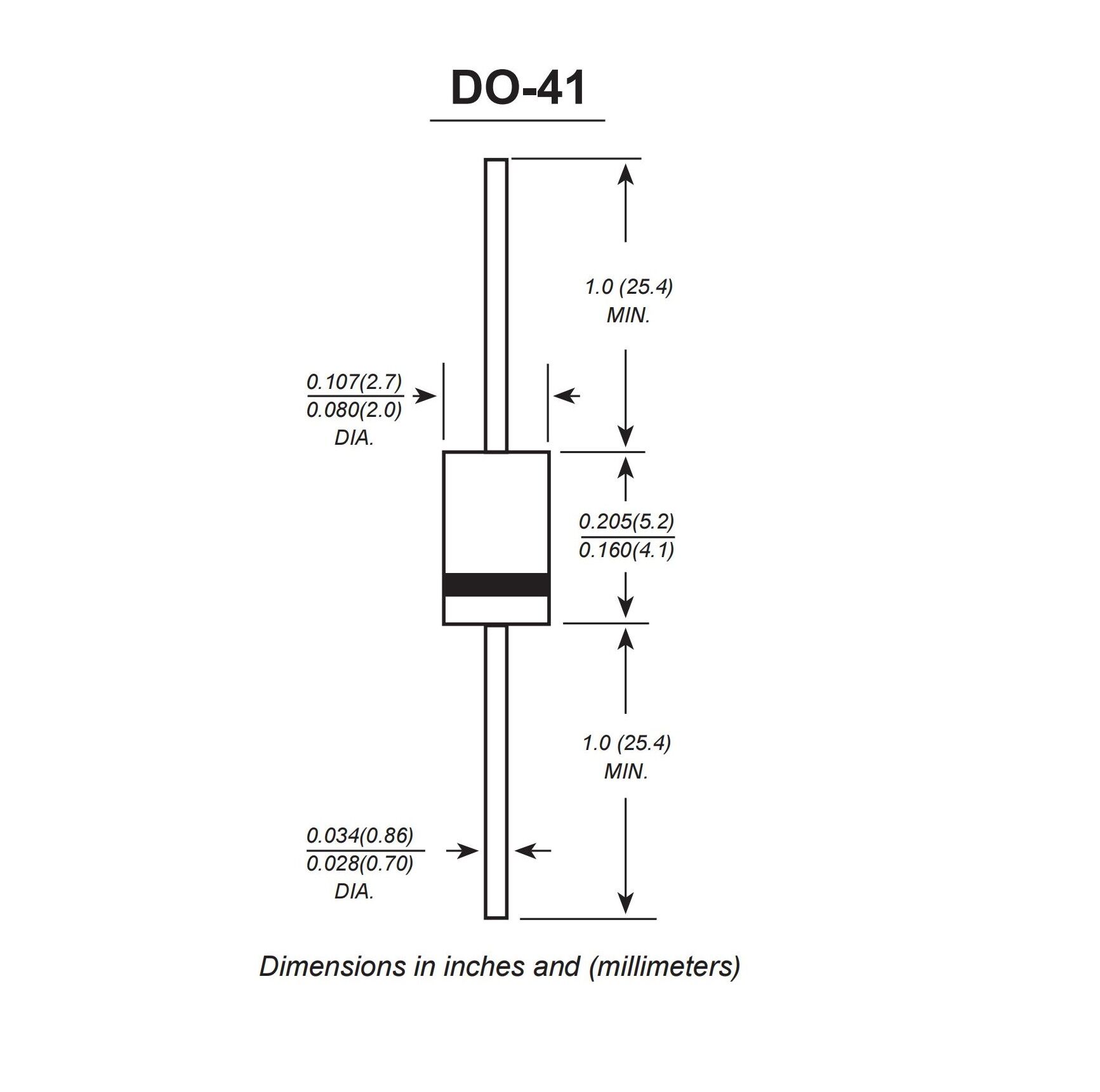

Product Drawing



Maximum Ratings and Electrical Characteristics


Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.



 SYMBOLS SR 120 SR 130 SR 140 SR 150 SR 160 SR 170 SR 180 SR 190 SR 1A0 SR 1150 SR 1200 UNITS
Maximum repetitive peak reverse voltage VRRM 20 30 40 50 60 70 80 90 100 150 200 VOLTS
Maximum RMS voltage VRMS 14 21 28 35 42 49 56 63 70 105 140 VOLTS
Maximum DC blocking voltage VDC 20 30 40 50 60 70 80 90 100 100 200 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1) I(AV) 1.0 Amp
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
IFSM		 40.0
Amps
Maximum instantaneous forward voltage at 1.0A VF 0.55 0.70 0.85 0.95 Volts
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃		 IR 0.5 0.2 mA
10.0 5.0 2.0
Typical junction capacitance (NOTE 1) CJ 110 80 pF
Typical thermal resistance (NOTE 2) RθJA 50.0 ℃/W
Operating junction temperature range TJ -65 to +125 -65 to +150 ℃
Storage temperature range TSTG -65 to +150 ℃


Note:

1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

download SR120 THRU SR1200.pdf
