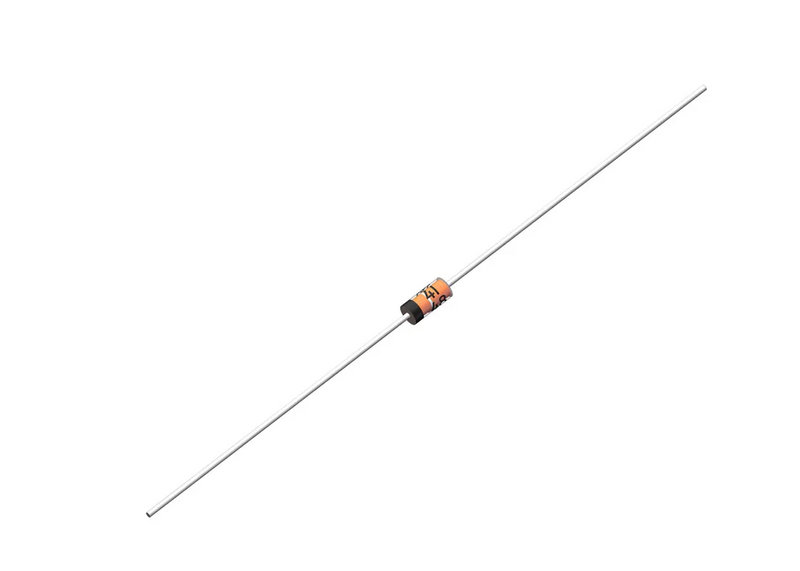

Diode 4148 1N4148 IN4148 LL4148
trusTec
200，000pcs
Negotiable (FOB/CNF/CIF)
T/T, L/C
15-30 days fresh products after order confirmation.
200,00000 pcs per month
| Quantity: | |
|---|---|
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Super fast switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guarantteed:
260 C/10 seconds,0.375”(9.5mm) lead length,
5 lbs. (2.3kg) tension
Method 2026
| Part No. | Package |
| 1N4148 | DO-35 Glass |
| LL4148 | MINI MELF |
| 1N4148W | SOD-123 |
| 1N4148WS | SOD-323 |
| 1N4148WT | SOD-523 |
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
| SYMBOLS | 1N4148 | UNITS | |
| Maximum repetitive peak reverse voltage | VRRM | 100 | VOLTS |
| Maximum RMS voltage | VRMS | 75 | VOLTS |
| Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=25 C | I(AV) | 150 | mAmps |
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) | IFSM | 500 | mAmps |
| Maximum instantaneous forward voltage at 10mA | VF | 1.0 | Volts |
| Maximum DC reverse current TA=25 C VR=75V at rated DC blocking voltage TA=100 C VR=20V | IR | 5.050 | µA |
| Maximum reverse recovery time (NOTE 1) | trr | 4.0 | ns |
| Typical junction capacitance (NOTE 2) | CJ | 4.0 | pF |
| Operating junction and storage temperature range | TJ,TSTG | -65 to +200 | ℃ |
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Super fast switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guarantteed:
260 C/10 seconds,0.375”(9.5mm) lead length,
5 lbs. (2.3kg) tension
Method 2026
| Part No. | Package |
| 1N4148 | DO-35 Glass |
| LL4148 | MINI MELF |
| 1N4148W | SOD-123 |
| 1N4148WS | SOD-323 |
| 1N4148WT | SOD-523 |
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
| SYMBOLS | 1N4148 | UNITS | |
| Maximum repetitive peak reverse voltage | VRRM | 100 | VOLTS |
| Maximum RMS voltage | VRMS | 75 | VOLTS |
| Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=25 C | I(AV) | 150 | mAmps |
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) | IFSM | 500 | mAmps |
| Maximum instantaneous forward voltage at 10mA | VF | 1.0 | Volts |
| Maximum DC reverse current TA=25 C VR=75V at rated DC blocking voltage TA=100 C VR=20V | IR | 5.050 | µA |
| Maximum reverse recovery time (NOTE 1) | trr | 4.0 | ns |
| Typical junction capacitance (NOTE 2) | CJ | 4.0 | pF |
| Operating junction and storage temperature range | TJ,TSTG | -65 to +200 | ℃ |
