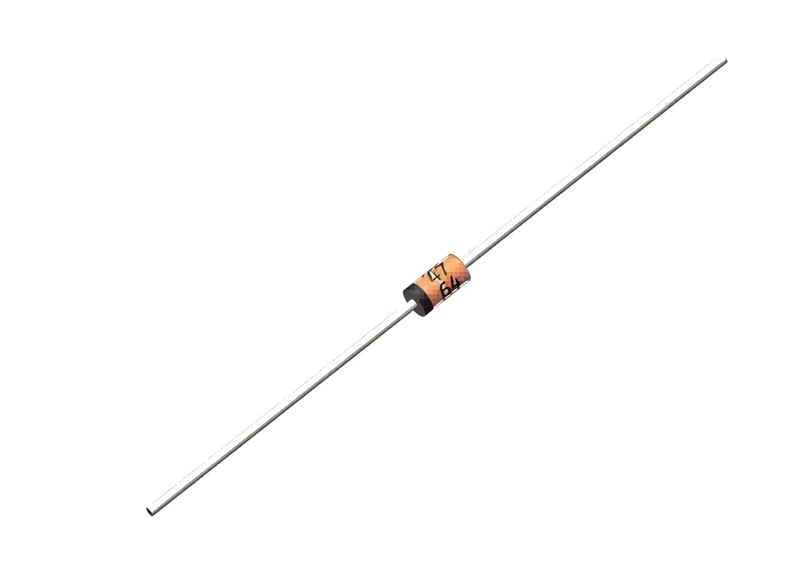

Zener Diode 3.3V To 100V DO-41 GLASS 1N4728A THRU 1N4764A

  • Diode 1N4728A THRU 1N4764A

  • trusTec

  • 200，000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature


Low zener impedance

Low reverse leakage

Power dissipation of 1000mW

High stability and high reliability


Mechanical Data


Case:

DO-41 Glass Case

Polarity:

Color band denotes cathode end

Mounting Position:

Any

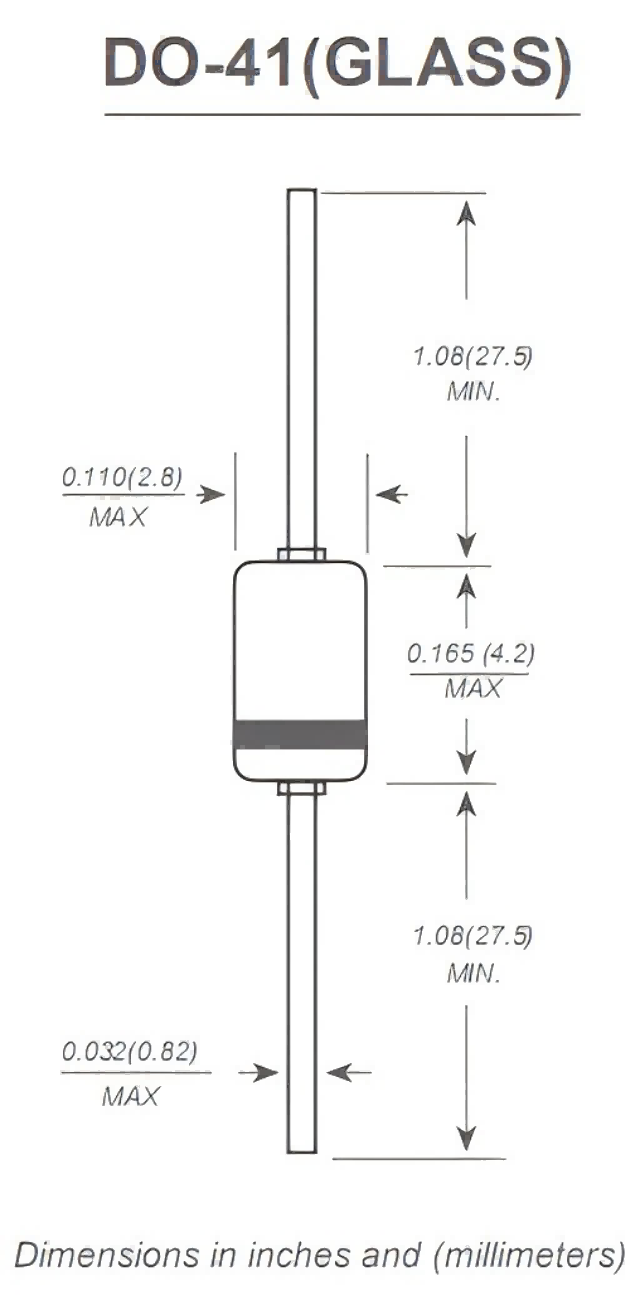

Product Drawing



1728714218561(1)

MAXIMUM RATINGS


Ratings at 25℃ ambient temperature unless otherwise specified.

1) Valid provided that leads are kept at ambient temperature at a distance of 8mm from case.


Parameters Symbol Value Unit
Power Dissipation Pd 500 1) mW
Operating junction temperature Tj 200 ℃
Storage temperature range Tstg -65 +200 ℃


ELECTRICAL CHARACTERISTICS


TYPE Zener Voltage Reverse Carrent Dynamic Resistance
Vz(V) Test Condition Ir(uA) Test Condition rd(Ω) Test Condition
Nom. Iz(mA) Max. Vr(V) Max. Iz(mA)
1N4728A 3.3 76.0 100 1.0 10 76.0
1N4729A 3.6 69.0 100 1.0 10 69.0
1N4730A 3.9 64.0 50 1.0 9 64.0
1N4731A 4.3 58.0 10 1.0 9 58.0
1N4732A 4.7 53.0 10 1.0 8 53.0
1N4733A 5.1 49.0 10 1.0 7 49.0
1N4734A 5.6 45.0 10 2.0 5 45.0
1N4735A 6.2 41.0 10 3.0 2 41.0
1N4736A 6.8 37.0 10 4.0 3.5 37.0
1N4737A 7.5 34.0 10 5.0 4 34.0
1N4738A 8.2 31.0 10 6.0 4.5 31.0
1N4739A 9.1 28.0 10 7.0 5 28.0
1N4740A 10 25.0 10 7.6 7 25.0
1N4741A 11 23.0 5 8.4 8 23.0
1N4742A 12 21.0 5 9.1 9 21.0
1N4743A 13 19.0 5 9.9 10 19.0
1N4744A 15 17.0 5 11.4 14 17.0
1N4745A 16 15.5 5 12.2 16 15.5
1N4746A 18 14.0 5 13.7 20 14.0
1N4747A 20 12.5 5 15.2 22 12.5
1N4748A 22 11.5 5 16.7 23 11.5
1N4749A 24 10.5 5 18.2 25 10.5
1N4750A 27 9.5 5 20.6 35 9.5
1N4751A 30 8.5 5 22.8 40 8.5
1N4752A 33 7.5 5 25.1 45 7.5
1N4753A 36 7.0 5 27.4 50 7.0
1N4754A 39 6.5 5 29.7 60 6.5
1N4755A 43 6.0 5 32.7 70 6.0
1N4756A 47 5.5 5 35.8 80 5.5
1N4757A 51 5.0 5 38.8 95 5.0
1N4758A 56 4.5 5 42.6 110 4.5
1N4759A 62 4.0 5 47.1 125 4.0
1N4760A 68 3.7 5 51.7 150 3.7
1N4761A 75 3.3 5 56.0 175 3.3
1N4762A 82 3.0 5 62.2 200 3.0
1N4763A 91 2.8 5 69.2 250 2.8
1N4764A 100 2.5 5 76.0 350 2.5
