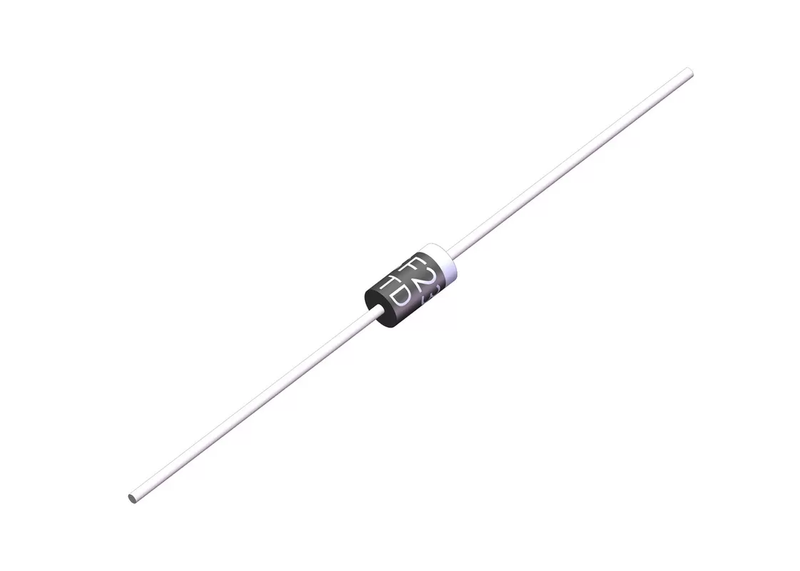

2A Super Fast Rectifier Diode ER 206 ER204 DO-15 Plastic Silicon Package

  • ER206

  • trusTec

  • 200，000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Super fast switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guarantteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension


Mechanical Data

Case:

JEDEC DO-15 molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750,
Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.014 ounce, 0.40 grams

Product Drawing



Maximum Ratings and Electrical Characteristics

Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%



SYMBOLS ER201 ER202 ER203 ER204 ER206 UNITS
Maximum repetitive peak reverse voltage VRRM 100 200 300 400 600 VOLTS
Maximum RMS voltage VRMS 70 140 210 280 420 VOLTS
Maximum DC blocking voltage VDC 100 200 300 400 600 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃ I(AV) 2.0 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 50 Amps
Maximum instantaneous forward voltage at 6.0A VF 0.95 1.25 1.7 Volts
Maximum DC reverse current TA=25℃at rated DC blocking voltage TA=100℃10 IR 5.0
50.0		 µA
Maximum reverse recovery time (NOTE 1) trr 35 ns
Typical junction capacitance (NOTE 2) CJ 60.0 30.0 pF
Typical thermal resistance (NOTE 3) RθJA 50.0 ℃/W
Operating junction and storage temperature range TJ,TSTG -55 to +150 ℃

Note:


1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted
