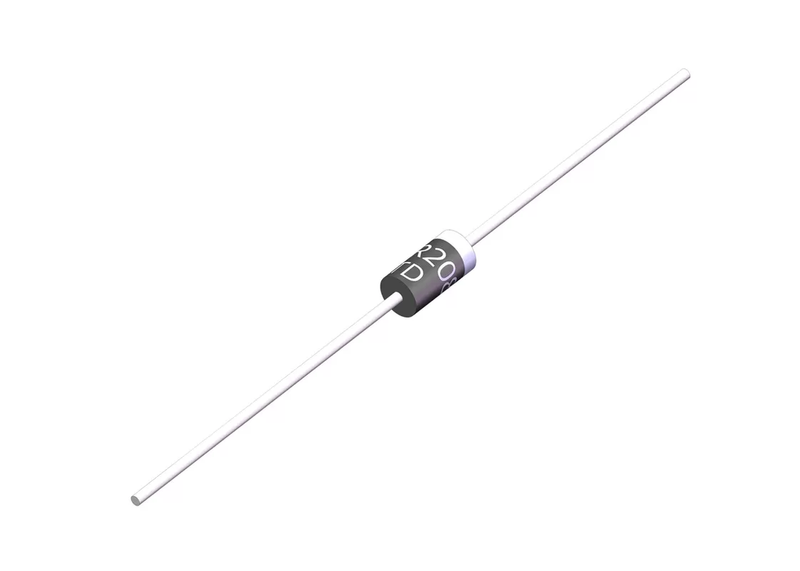

1000V 2 Amp HER208 High Efficiency Rectifier Diode Axial DO-15 Through Hole T B

  • HER208

  • trusTec

  • 200,000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

High speed switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension



Mechanical Data

Case:

JEDEC DO-15 molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.014 ounce, 0.40 grams

Product Drawing



Maximum Ratings and Electrical Characteristics


Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%



SYMBOLS HER201 HER202 HER203 HER204 HER205 HER206 HER207 HER208 UNITS
Maximum repetitive peak reverse voltage VRRM 50 100 200 300 400 600 800 1000 VOLTS
Maximum RMS voltage VRMS 35 70 140 210 280 420 560 700 VOLTS
Maximum DC blocking voltage VDC 50 100 200 300 400 600 800 1000 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃ I(AV) 2.0 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 60.0 Amps
Maximum instantaneous forward voltage at 6.0A VF 1.0 1.3 1.7 Volts
Maximum DC reverse current TA=25℃at rated DC blocking voltage TA=100℃10
5.0
100

Maximum reverse recovery time (NOTE 1) trr 50 70 ns
Typical junction capacitance (NOTE 2) CJ 30.0 20.0 pF
Typical thermal resistance (NOTE 3) RθJA 50.0 ℃/W
Operating junction and storage temperature range TJ,TSTG -65 to +150

Note:


1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted
