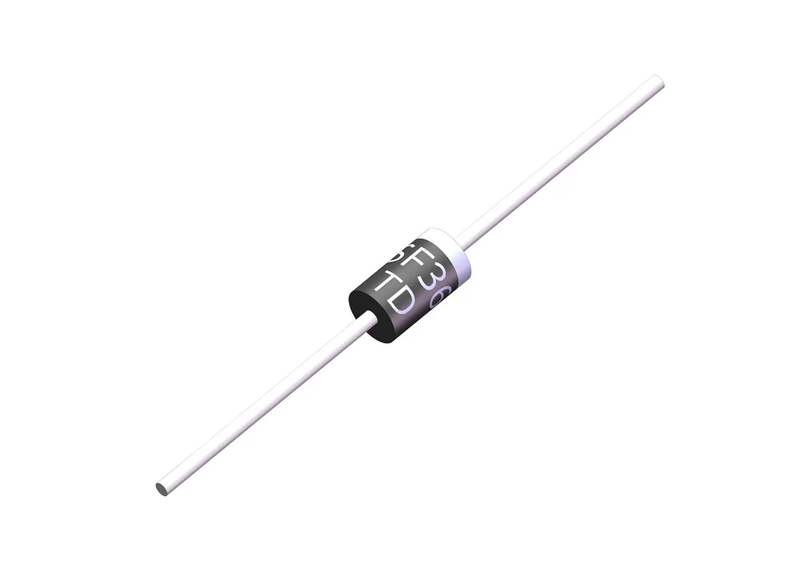

SF36 Super Fast Rectifier Diode 3A 400V 35ns DO-27 1000pcs Tape Box Packing

  • SF36

  • trusTec

  • 200，000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Super fast switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guarantteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension


Mechanical Data

Case:

JEDEC DO-201AD molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.04 ounce, 1.10 grams


Product Drawing


Maximum Ratings and Electrical Characteristics

Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%



SYMBOLS SF31 SF32 SF33 SF34 SF35 SF36 SF38 UNITS
Maximum repetitive peak reverse voltage VRRM 50 100 150 200 300 400 600 VOLTS
Maximum RMS voltage VRMS 35 70 105 140 210 280 420 VOLTS
Maximum DC blocking voltage VDC 50 100 150 200 300 400 600 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃ I(AV) 3.0 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 125 Amps
Maximum instantaneous forward voltage at 6.0A VF 0.95 1.25 1.7 Volts
Maximum DC reverse current TA=25℃at rated DC blocking voltage TA=100℃10 IR 10.0
50.0		 µA
Maximum reverse recovery time (NOTE 1) trr 35 ns
Typical junction capacitance (NOTE 2) CJ 100.0 50.0 pF
Typical thermal resistance (NOTE 3) RθJA 30.0 ℃/W
Operating junction and storage temperature range TJ,TSTG -55 to +150 ℃


Note:


1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted
