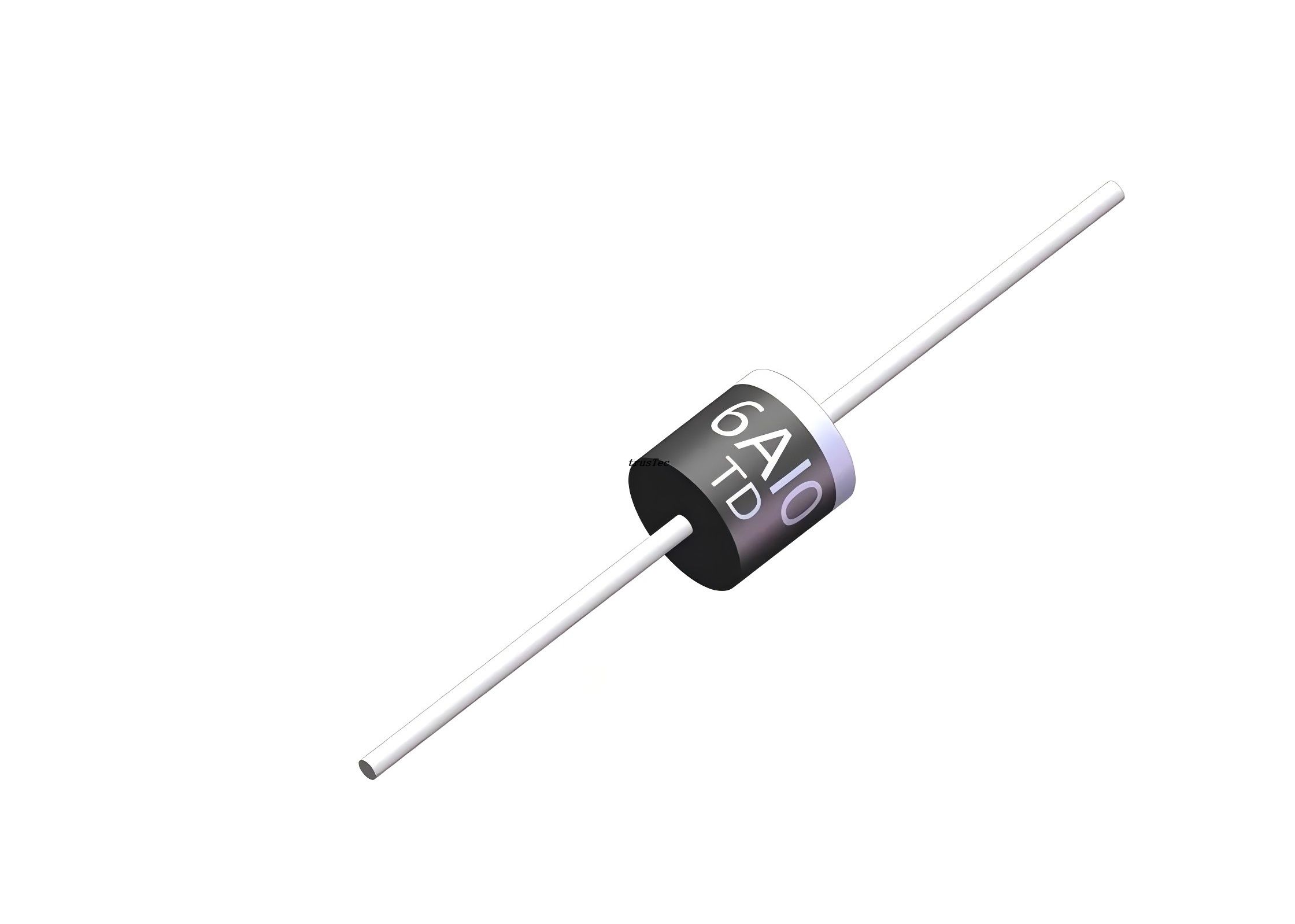

6A05 6A1 6A2 6A4 6A8 6A10 axial diode R-6 50V-1000V 6A silicon rectifiers

  • 6A05 THRU 6A10

  • trusTec

  • 200，000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Construction utilizes void-free molded plastic technique

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension


Mechanical Data


Case:

R-6 molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.072 ounce, 2.05 grams


Product Drawing

R-6

Maximum Ratings and Electrical Characteristics


Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.



 SYMBOLS 6A05 6A1 6A2 6A4 6A6 6A8 6A10 UNITS
Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 VOLTS
Maximum RMS voltage VRMS 35 70 140 280 420 560 700 VOLTS
Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 VOLTS
Maximum average forward rectified current
0.375”(9.5mm) lead length at TA=75℃		 I(AV) 6.0 Amps
Peak forward surge current
8.3ms single half sine-wave superimposed on rated load (JEDEC Method)		 IFSM 300 Amps
Maximum instantaneous forward voltage at 6.0A VF 1.0 VOLTS
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃		 IR 10.0
100		 µA
Typical junction capacitance (NOTE 1) CJ 150.0 pF
Typical thermal resistance (NOTE 2) RθJA 10.0 ℃/W
Operating junction and storage temperature range TJ,TSTG -65 to +175 ℃
