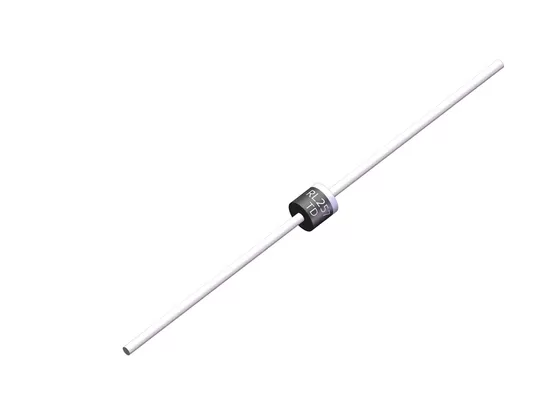

RL257 Standard Rectifier Diode 1000V 2.5A

  • RL257

  • trusTec

  • 200，000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Features


The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

Construction utilizes void-free molded plastic technique

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension


Mechanical Data


Case:

R-3 molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.021 ounce, 0.58 grams

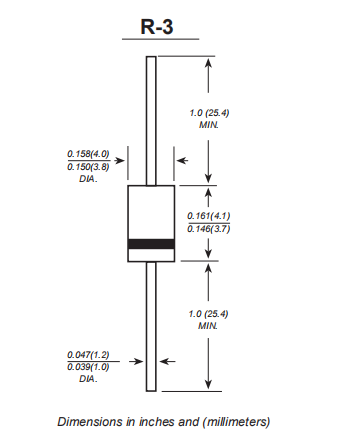

Product  Drawing

r-3



Limiting Values (Absolute Maximum Rating)

L

Maximum Ratings and Electrical Characteristic



Type Maximum
repetitive peak
reverse voltage		 Maximum
average
rectified
current		 Forward
Peak Surge
Current@8.3ms
single half-wave		 Maximum forward
voltage@TA=25℃		 Maximum reverse
current
@VRRM TA=25℃		 Case Style
VRRM I(AV) IFSM VF@IF IR
V A A V A μA
RL251 50 2.5 120 1.0 2.5 5 R-3
RL252 100 2.5 120 1.0 2.5 5 R-3
RL253 200 2.5 120 1.0 2.5 5 R-3
RL254 400 2.5 120 1.0 2.5 5 R-3
RL255 600 2.5 120 1.0 2.5 5 R-3
RL256 800 2.5 120 1.0 2.5 5 R-3
RL257 1000 2.5 120 1.0 2.5 5 R-3
