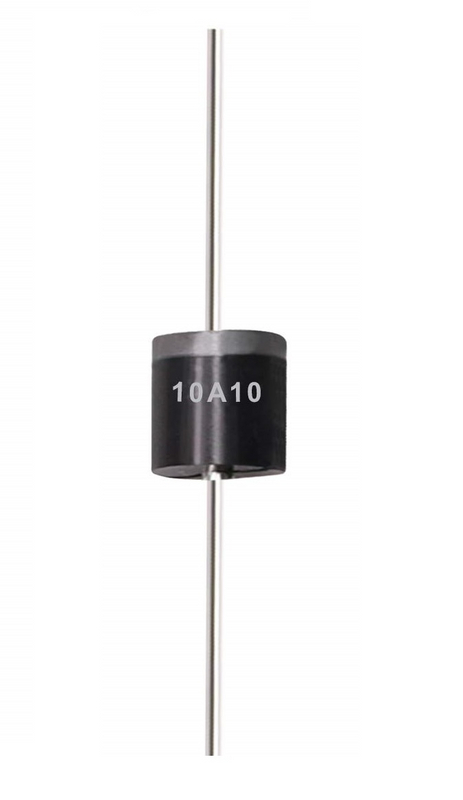

General Purpose Rectifier 10A10 1000V R-6 Axial Electronic Silicon Diodes

  • 10A10

  • trusTec

  • 200，000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Features


The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Construction utilizes void-free
molded plastic technique
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds,0.375”(9.5mm) lead length,
5 lbs. (2.3kg) tension


Mechanical Data


Case:

R-6 molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.072 ounce, 2.05 grams


Product  Drawing

R-6


Limiting Values (Absolute Maximum Rating)

Limiting

Maximum Ratings and Electrical Characteristic


Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.





 SYMBOLS 10A05 10A1 10A2 10A4 10A6 10A8 10A10 UNITS
Maximum repetitive peak reverse voltage VRRM 50 100 200 300 400 500 600 VOLTS
Maximum RMS voltage VRMS 35 70 140 210 280 350 420 VOLTS
Maximum DC blocking voltage VDC 50 100 200 300 400 500 600 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃ I(AV) 10.0 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 500 Amps
Maximum instantaneous forward voltage at 3.0A VF 1.0 VOLTS
Maximum DC reverse current TA=25 at rated DC blocking voltage TA=100℃ IR                                               10.0
                                              100		 µA
Typical junction capacitance (NOTE 1) CJ 150.0 pF
Typical thermal resistance (NOTE 2) RθJA 10.0 ℃/W
Operating junction and storage temperature range TJ,TSTG -65 to +175 ℃
