SF14 SF16
trusTec
200，000pcs
Negotiable (FOB/CNF/CIF)
T/T, L/C
15-30 days fresh products after order confirmation.
200,00000 pcs per month
| Quantity: | |
|---|---|

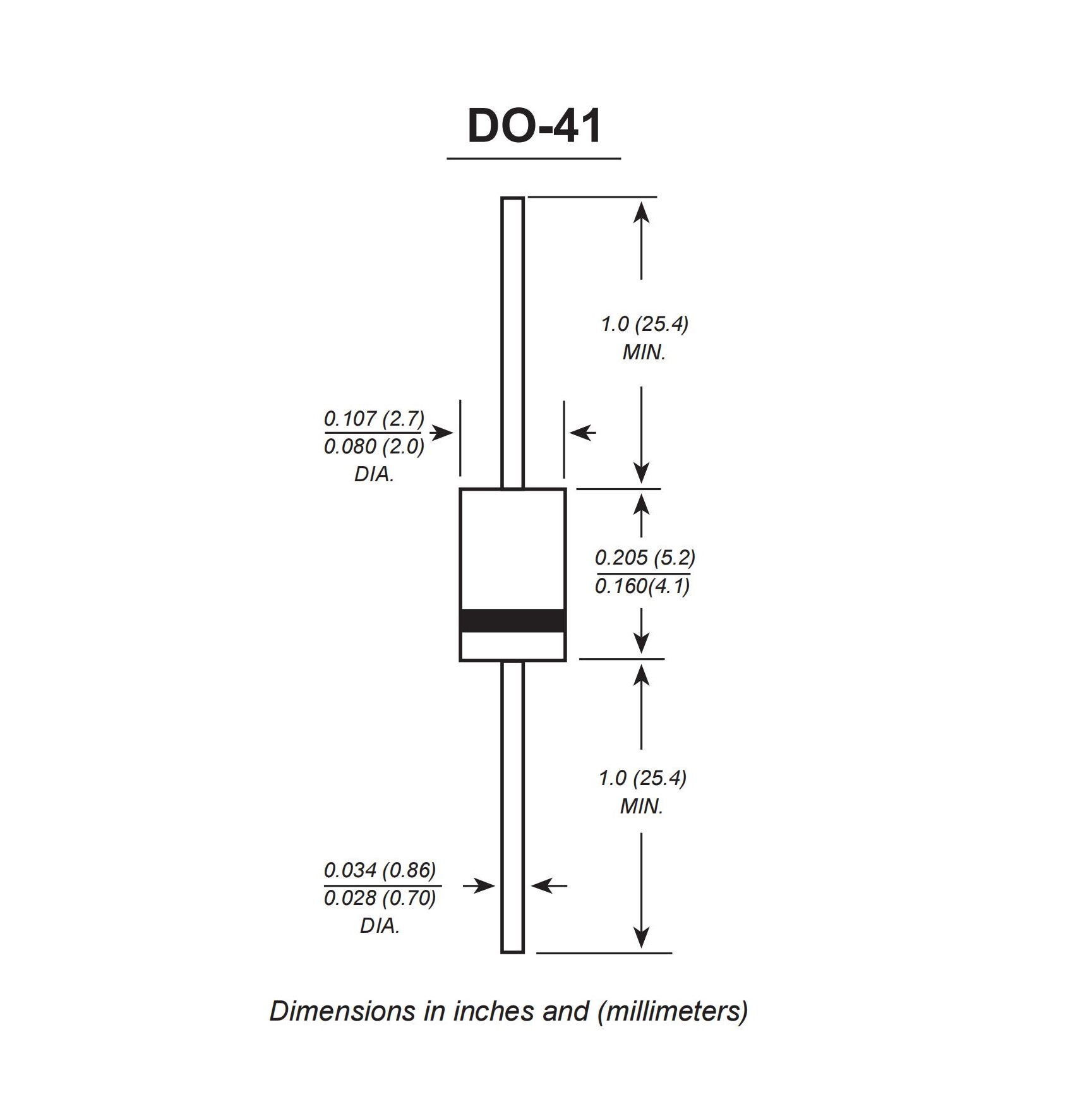

The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Super fast switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guarantteed:
260 C/10 seconds,0.375”(9.5mm) lead length,
5 lbs. (2.3kg) tension
Method 2026
Mounting Position: Any
Ratings at 25℃ ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
| SYMBOLS | SF11 | SF12 | SF13 | SF14 | SF15 | SF16 | SF18 | UNITS | |
|---|---|---|---|---|---|---|---|---|---|
| Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 150 | 200 | 300 | 400 | 600 | VOLTS |
| Maximum RMS voltage | VRMS | 35 | 70 | 105 | 140 | 210 | 280 | 420 | VOLTS |
| Maximum DC blocking voltage | VDC | 50 | 100 | 150 | 200 | 300 | 400 | 600 | VOLTS |
| Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃ | I(AV) | 1.0 | Amps | ||||||
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) | IFSM | 30 | Amps | ||||||
| Maximum instantaneous forward voltage at 6.0A | VF | 0.95 | 1.25 | 1.7 | Volts | ||||
| Maximum DC reverse current TA=25℃at rated DC blocking voltage TA=100℃10 | IR | 5.0 50.0 | µA | ||||||
| Maximum reverse recovery time (NOTE 1) | trr | 35 | ns | ||||||
| Typical junction capacitance (NOTE 2) | CJ | 15.0 | 10.0 | pF | |||||
| Typical thermal resistance (NOTE 3) | RθJA | 60.0 | ℃/W | ||||||
| Operating junction and storage temperature range | TJ,TSTG | -55 to +150 | ℃ | ||||||
