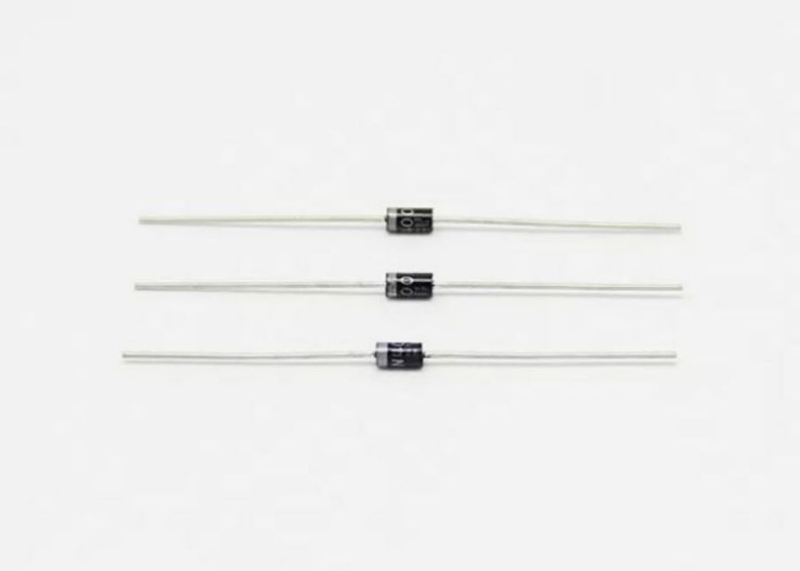

1A Rectifier Diode 1000V DO-41 1N4007

Feature

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

Construction utilizes void-free molded plastic technique

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

Mechanical Data

Case:

DO-41 molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.012 ounce, 0.33 grams

Product Drawing

Maximum Ratings and Electrical Characteristics

Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	1N4001	1N4002	1N4003	1N4004	1N4005	1N4006	1N4007	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	300	400	500	600	VOLTS
Maximum RMS voltage	VRMS	35	70	140	210	280	350	420	VOLTS
Maximum DC blocking voltage	VDC	50	100	200	300	400	500	600	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃	I(AV)	1.0							Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	30							Amps
Maximum instantaneous forward voltage at 3.0A	VF	1.0							VOLTS
Maximum DC reverse current TA=25℃at rated DC blocking voltage TA=100℃	IR	5.0 100							µA
Typical junction capacitance (NOTE 1)	CJ	15.0							pF
Typical thermal resistance (NOTE 2)	RθJA	50.0							℃/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +175							℃

1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
