Feature


The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Construction utilizes void-free molded plastic technique

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension


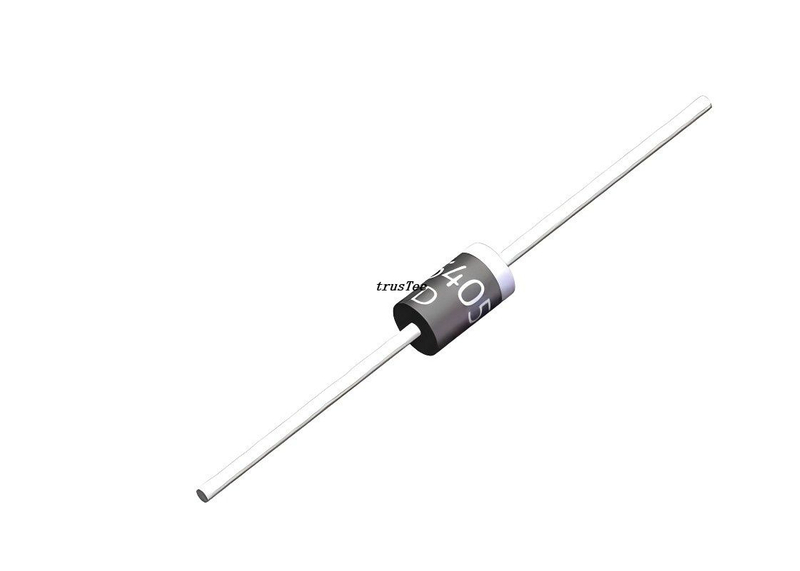

Mechanical Data


Case:

JEDEC DO-201AD molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.04 ounce, 1.10 grams

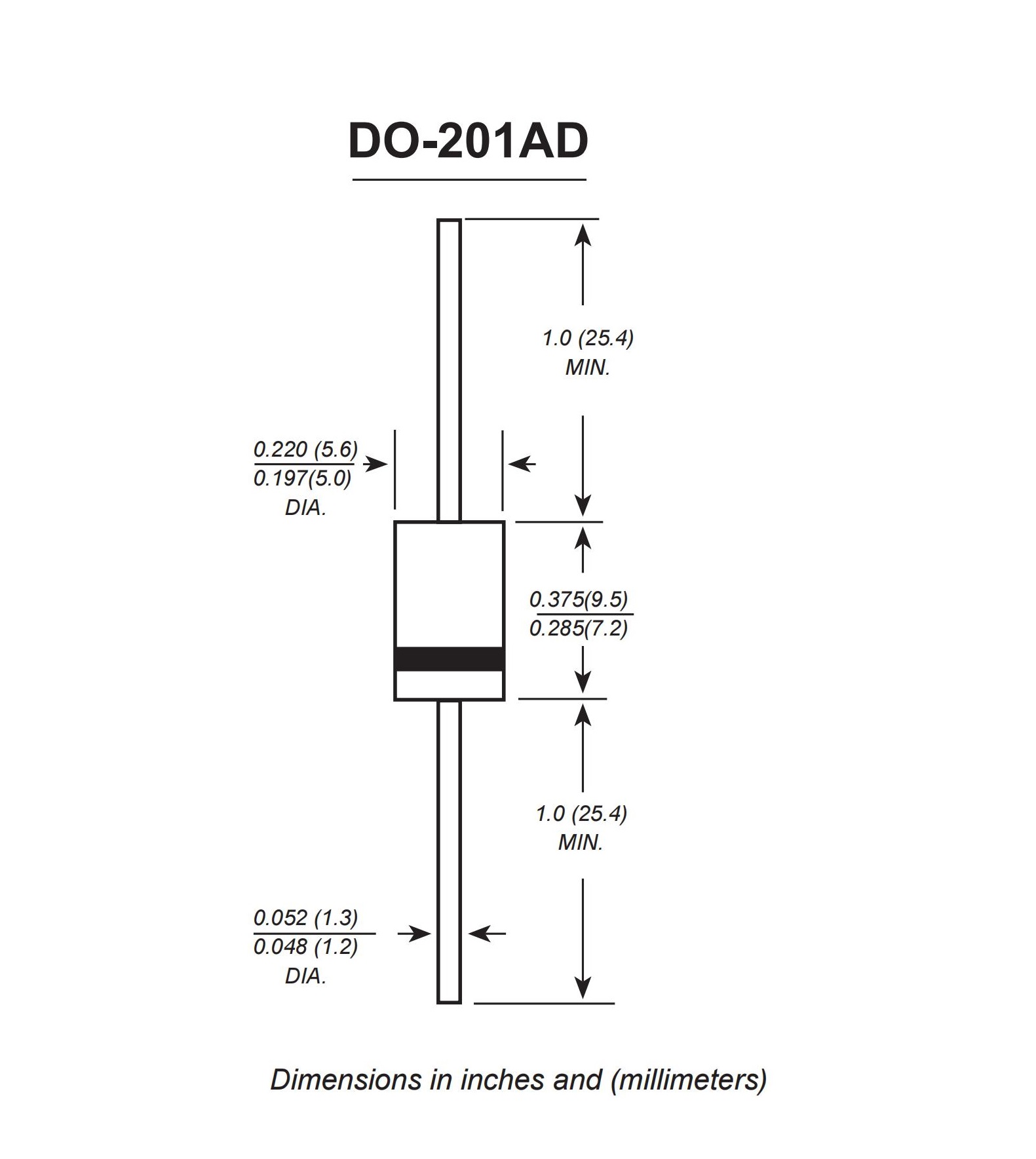

Product Drawing

DO-201AD

Maximum Ratings and Electrical Characteristics


Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.



 SYMBOLS 1N
5400		 1N
5401		 1N
5402		 1N
5403		 1N
5404		 1N
5405		 1N
5406		 1N
5407		 1N
5408		 UNITS
Maximum repetitive peak reverse voltage VRRM 50 100 200 300 400 500 600 800 1000 VOLTS
Maximum RMS voltage VRMS 35 70 140 210 280 350 420 560 700 VOLTS
Maximum DC blocking voltage VDC 50 100 200 300 400 500 600 800 1000 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃ I(AV) 3.0 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 150 Amps
Maximum instantaneous forward voltage at 3.0A VF 1.0 VOLTS
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃		 IR 5.0
100		 µA
Typical junction capacitance (NOTE 1) CJ 30.0 pF
Typical thermal resistance (NOTE 2) RθJA 20.0 ℃/W
Operating junction and storage temperature range TJ,TSTG -65 to +175 ℃


Note:

1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted
