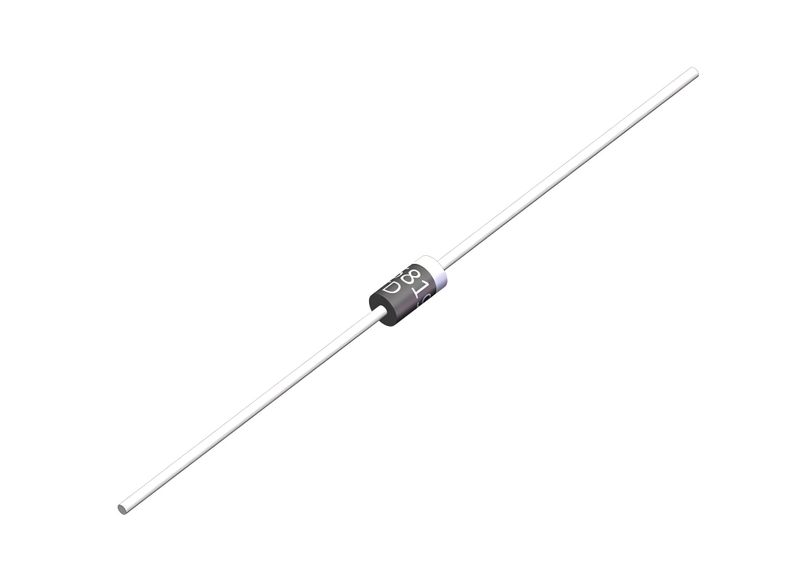

Schottky barrier recitifiers 1N5817 THRU 1N5819 20 to 40V 1A DO-41

  • 1N5817 THRU 1N5819

  • trusTec

  • 200,000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature


Plastic package has Underwriters Laboratory

Flammability Classification 94V-0

Metal silicon junction,majority carrier conduction

Guardring for overvoltage protection

Low power loss,high efficiency

High current capability,low forward voltage drop

High surge capability

For use in low voltage,high frequency inverters, free wheeling,and polarity protection applications

High temperature soldering guaranteed: 260 C/10 seconds,0.375(9.5mm) lead length, 5 lbs. (2.3kg) tension


Mechanical Data


Case:

JEDEC DO-41 molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.012 ounce, 0.33 grams

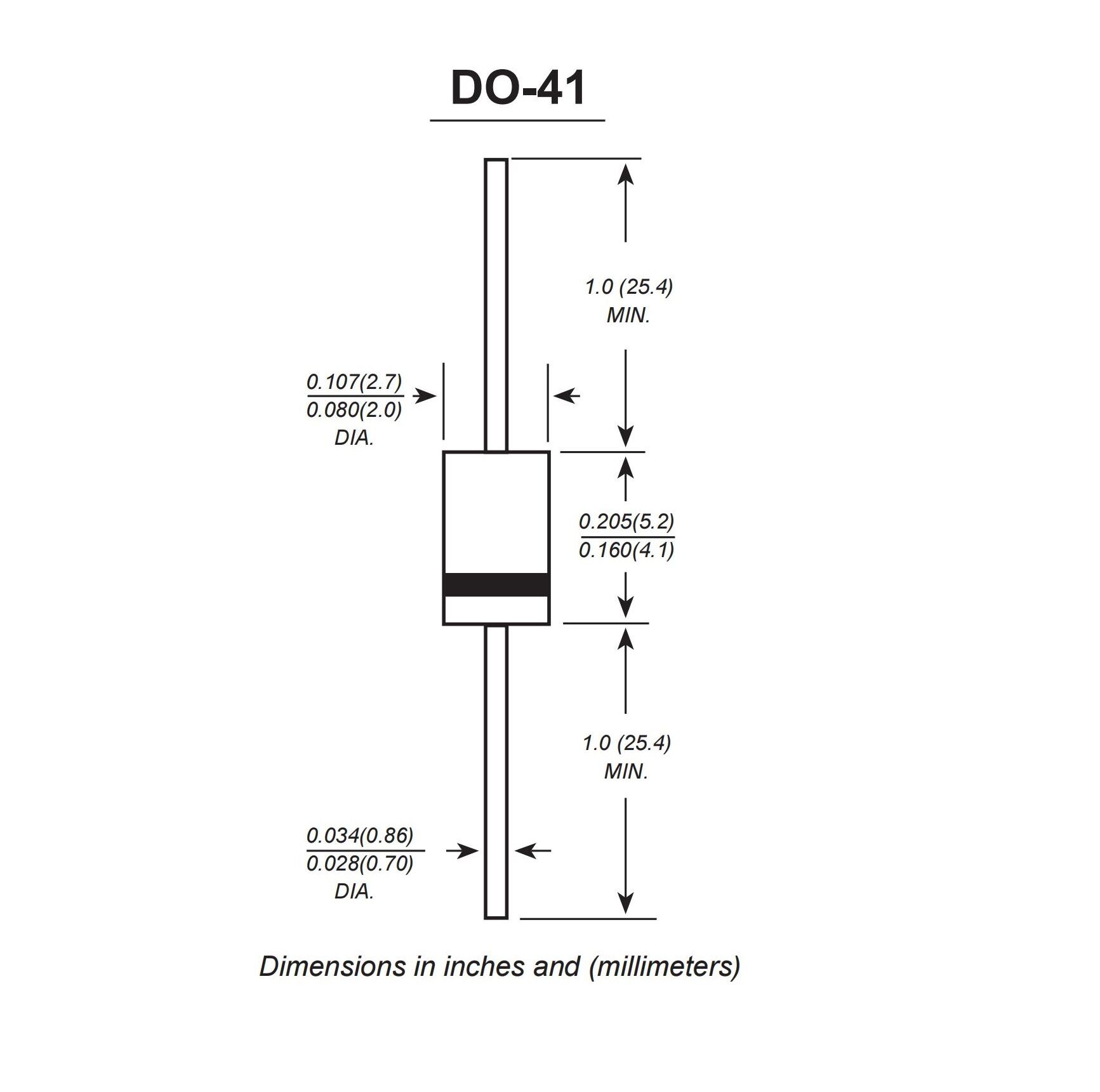

Product Drawing



Maximum Ratings and Electrical Characteristics


Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.



SYMBOLS 1N5817 1N5818 1N5819 UNITS
Maximum repetitive peak reverse voltage VRRM 20 30 40 VOLTS
Maximum RMS voltage VRMS 14 21 28 VOLTS
Maximum DC blocking voltage VDC 20 30 40 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TL=90 ℃ I(AV) 1.0 Amp
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 25.0 Amps
Maximum instantaneous forward voltage at 1.0A VF 0.450 0.550 0.600 Volts
Maximum DC reverse current TA=25 ℃
at rated DC blocking voltage TA=100 ℃
IR 0.5
10.0
mA
Typical junction capacitance (NOTE 1) CJ 110.0 pF
Typical thermal resistance (NOTE 2) RθJA 50.0 ℃/W
Operating junction and storage temperature range TJ,TSTG -65 to +125


Note:

1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375 (9.5mm)lead length,P.C.B. mounted
