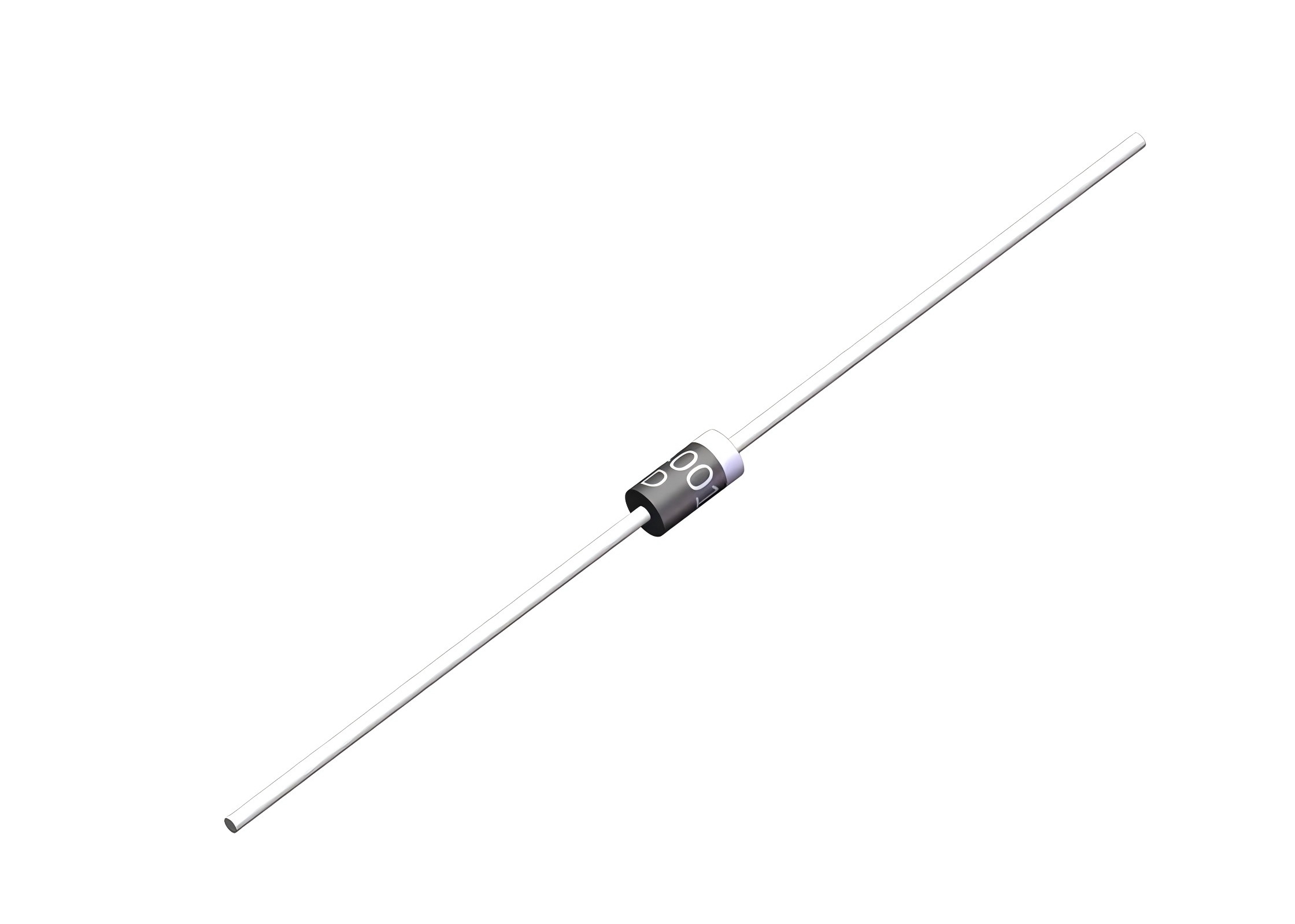

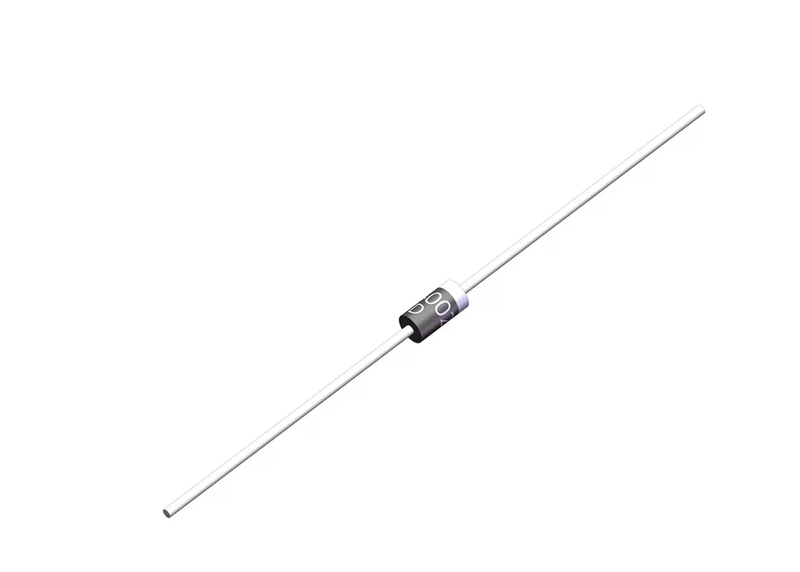

1A Rectifier Diode 1N4001G THRU 1N4007G DO-41 Glass passivated diode

  • 1N4001G THRU 1N4007G

  • trusTec

  • 200,000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature


The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Construction utilizes void-free molded plastic technique

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375(9.5mm) lead length, 5 lbs. (2.3kg) tension

Glass passivated chip junction


Mechanical Data


Case:

JEDEC DO-41 molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.012 ounce, 0.33 grams


Product Drawing

DO-41

Maximum Ratings and Electrical Characteristics


Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.



SYMBOLS 1N
4001G
1N
4002G
1N
4003G
1N
4004G
1N
4005G
1N
4006G
1N
4007G
UNITS
Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 VOLTS
Maximum RMS voltage VRMS 35 70 140 280 420 560 700 VOLTS
Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃ I(AV) 1.0 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 30.0 Amps
Maximum instantaneous forward voltage at 1.0A VF 1.0 VOLTS
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃
IR 5.0
50.0
µA
Typical junction capacitance (NOTE 1) CJ 15.0 pF
Typical thermal resistance (NOTE 2) RθJA 50.0 ℃/W
Operating junction and storage temperature range TJ,TSTG -65 to +175


Note:

1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375(9.5mm)lead length,P.C.B. mounted
