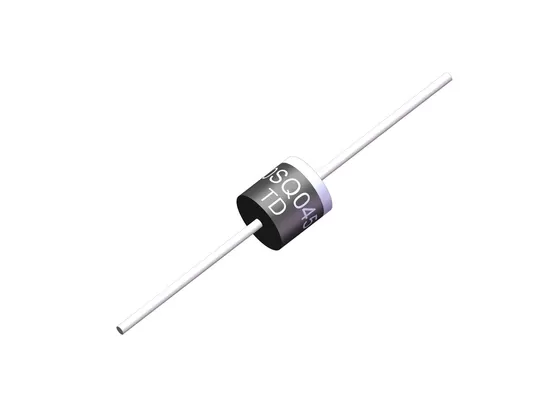

10SQ045 THRU 15SQ045 Schottky Diode 10A 45V-50V R-6 Axial Package

  • 10SQ045 THRU 15SQ045

  • trusTec

  • 200,000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

FEATURES


The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Metal silicon junction,majority carrier conduction

Low power loss,high efficiency

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension


MECHANICAL DATA


Case:

JEDEC R-6 molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.07 ounce, 2.10 grams


PRODUCT DRAWING




Limiting Values (Absolute Maximum Rating)

Limiting

MAXIMUM RATINGS


Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.



SYMBOLS 20SQ030 20SQ035 20SQ040 20SQ045 20SQ050 20SQ060 20SQ080 20SQ100 UNITS
Maximum repetitive peak reverse voltage VRRM 30 35 40 45 50 60 80 100 VOLTS
Maximum RMS voltage VRMS 21 25 28 32 35 42 56 70 VOLTS
Maximum DC blocking voltage VDC 30 35 40 45 50 60 80 100 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1) I(AV) 20 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 450 Amps
Maximum instantaneous forward voltage at 5.0A VF 0.55 0.7 0.8 Volts
Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=125 C IR 0.5
50
mA
Typical junction capacitance (NOTE 1) CJ 450 pF
Typical thermal resistance (NOTE 2) RθJC 3.5 ℃/W
Operating junction temperature range TJ, -55 to +200
Storage temperature range TSTG -55 to +200


Note


1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to case
