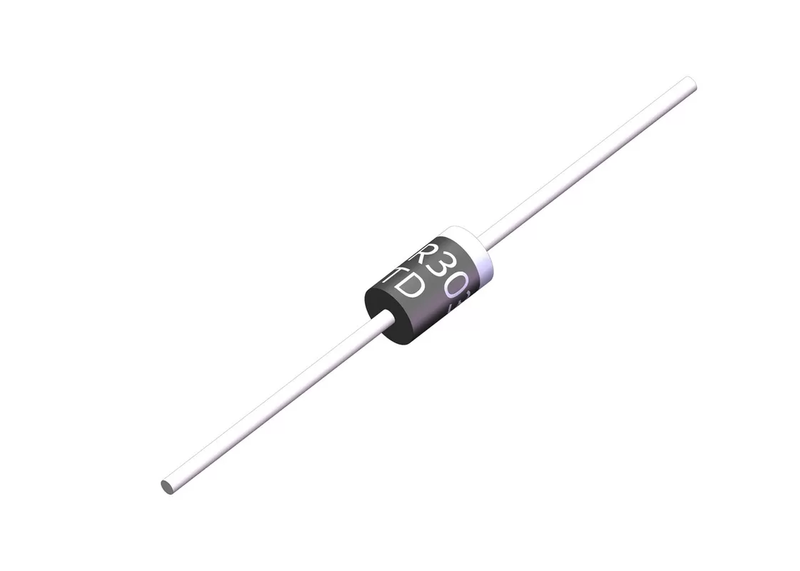

HER303 High Efficiency Rectifier Diode 3A 200V

  • HER303

  • trusTec

  • 200，000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

FEATURES


The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

High speed switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension


MECHANICAL DATA


Case:

JEDEC DO-201AD molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.04 ounce, 1.10 grams


PRODUCT DRAWING



Maximum Ratings and Electrical Characteristic


Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%




 SYMBOLS HER301 HER302 HER303 HER304 HER305 HER306 HER307 HER308 UNITS
Maximum repetitive peak reverse voltage VRRM 50 100 200 300 400 600 800 1000 VOLTS
Maximum RMS voltage VRMS 35 70 140 210 280 420 560 700 VOLTS
Maximum DC blocking voltage VDC 50 100 200 300 400 600 800 1000 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃ I(AV) 3.0 Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 150.0 Amps
Maximum instantaneous forward voltage at 6.0A VF 1.0 1.3 1.7 Volts
Maximum DC reverse current TA=25℃at rated DC blocking voltage TA=100℃10
5.0
150		 µA
Maximum reverse recovery time (NOTE 1) trr 50 70 ns
Typical junction capacitance (NOTE 2) CJ 70.0 50.0 pF
Typical thermal resistance (NOTE 3) RθJA 20.0 ℃/W
Operating junction and storage temperature range TJ,TSTG -65 to +150 ℃


Note

1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted
